[Automate Build] 4. Setup Configurations in Jenkins

4. Setup Configurations in Jenkins

I need to setup configurations.
My company's tool has been built by Jdk1.6.0_45 and ant1.7.0.
(I don't like these old versions. However, I don't have authority changing this.)

Go to 'Configuration System'


Select SVN version and save


Go to 'Global Tool Configuration'

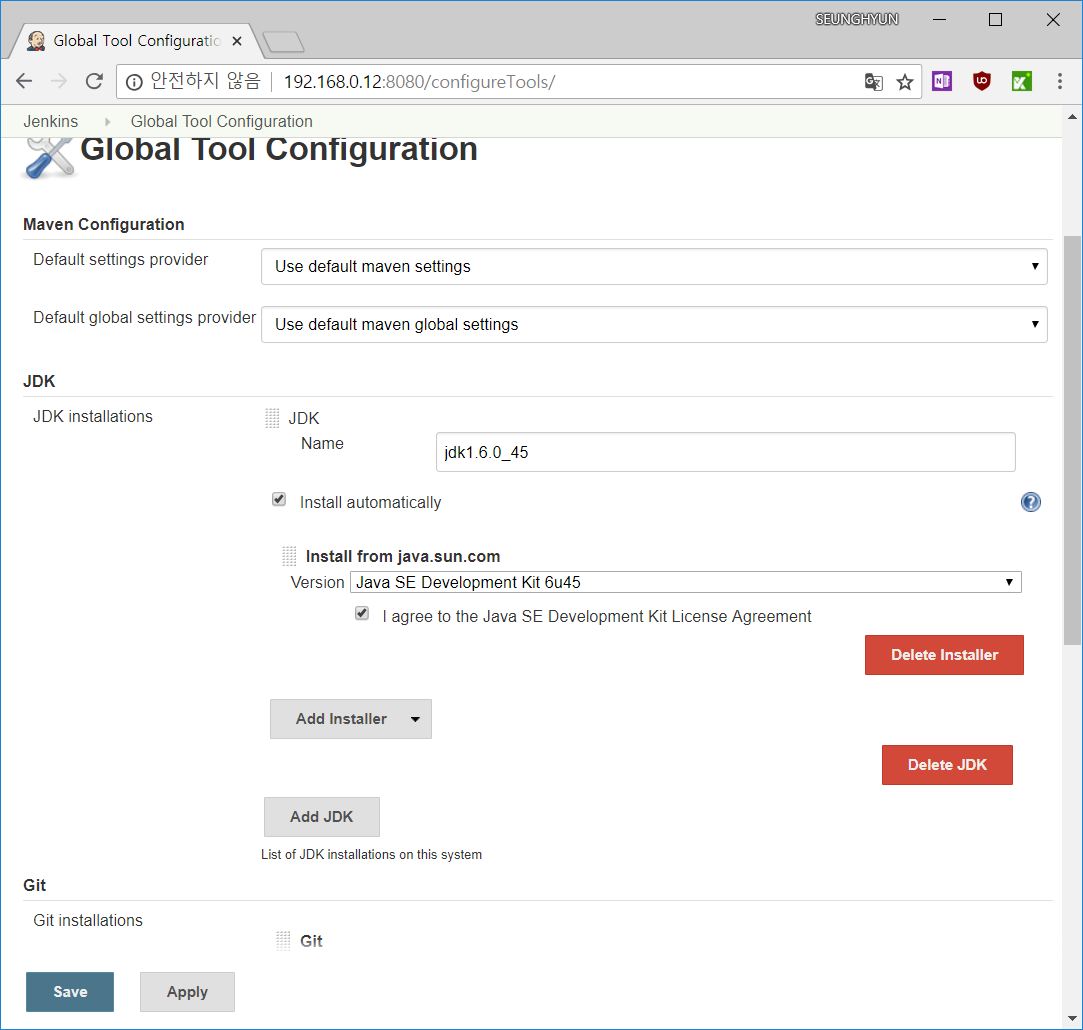

Fill in the name and select version.
I select jdk1.6.0_45. You can select other proper version for you
For download jdk from oracle click this


Fill in your oracle account informations


Saved

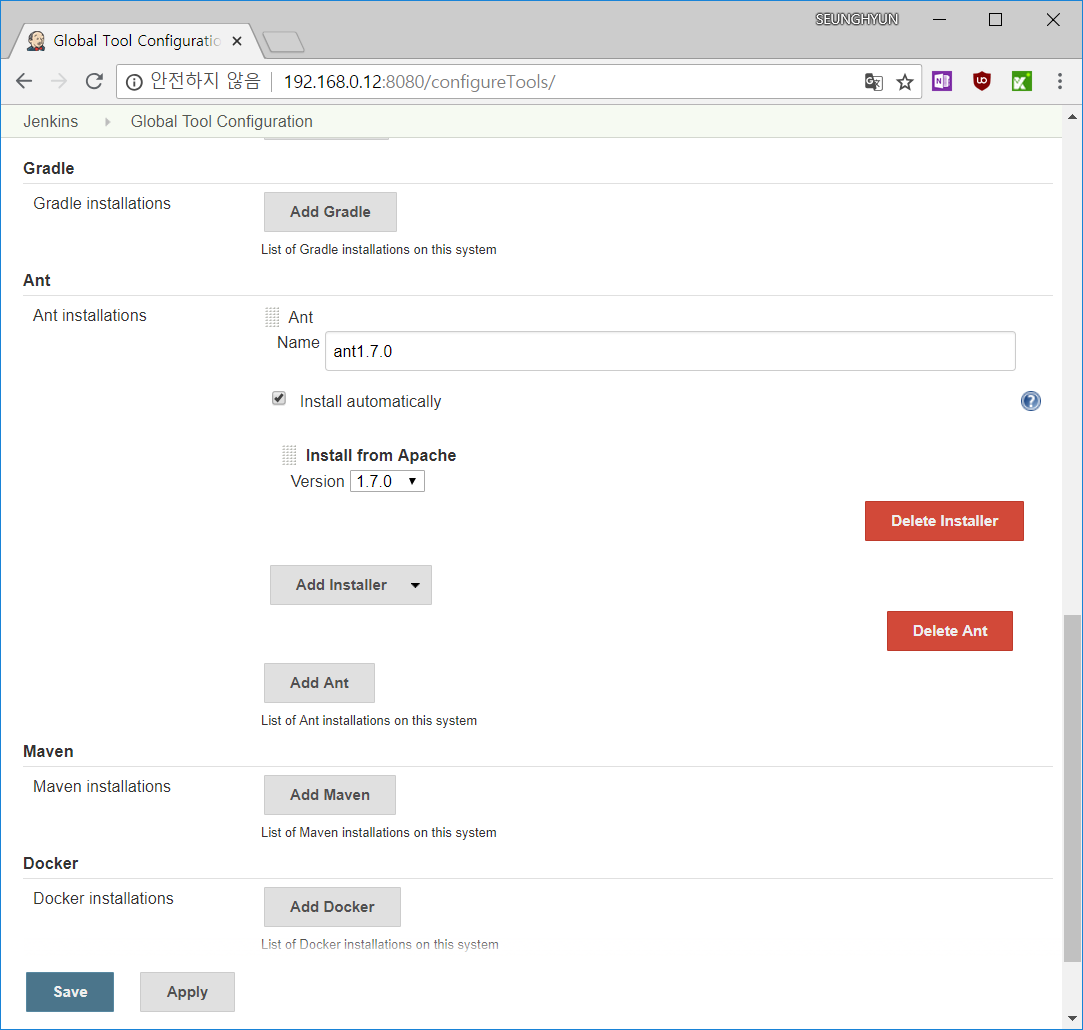

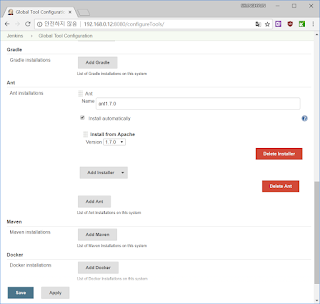

Fill in the name and select version
I select and1.7.0

[Automate Build] 3. Getting Started Jenkins

3. Getting Started Jenkins

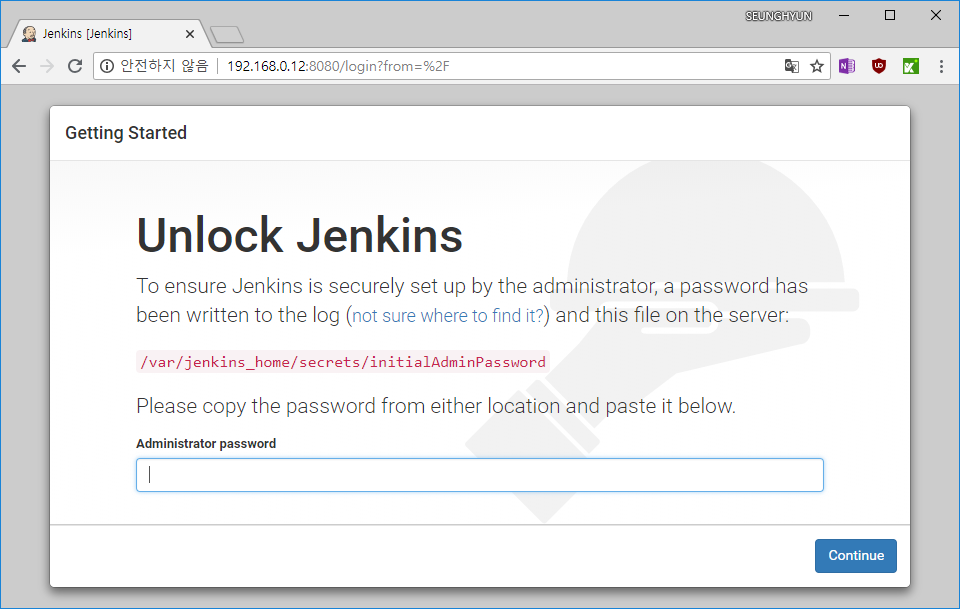

Input initial password

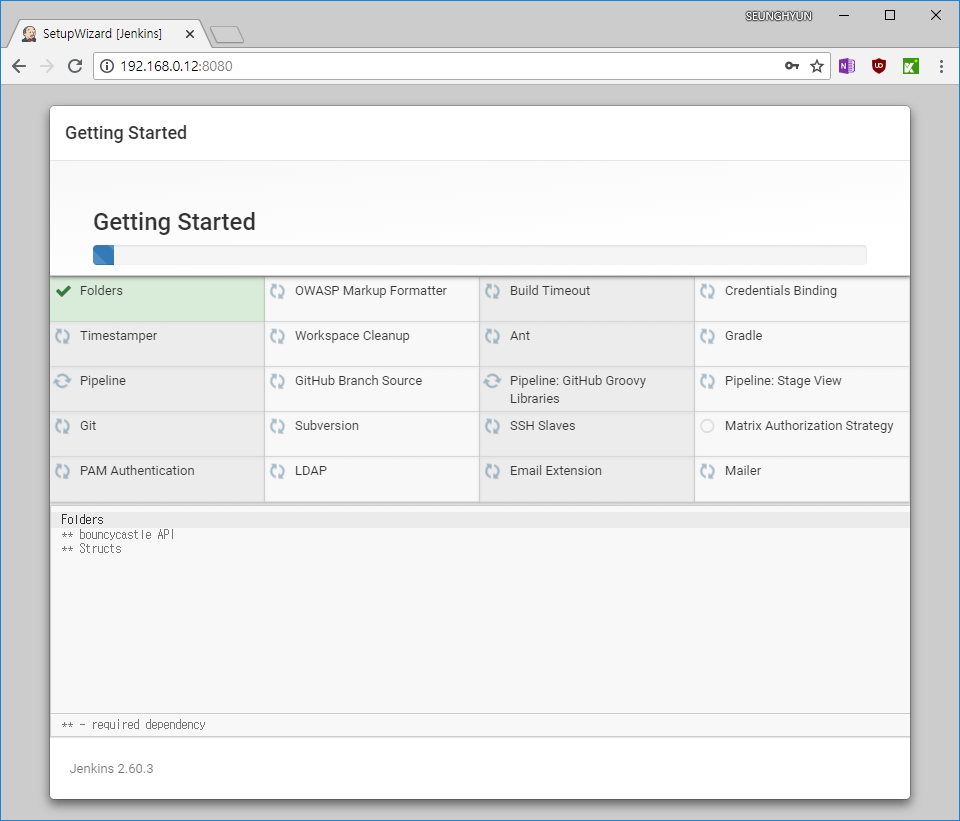

I don't know well about Jenkins, so I choose 'Install sugested plugins'

Some plugins are installing

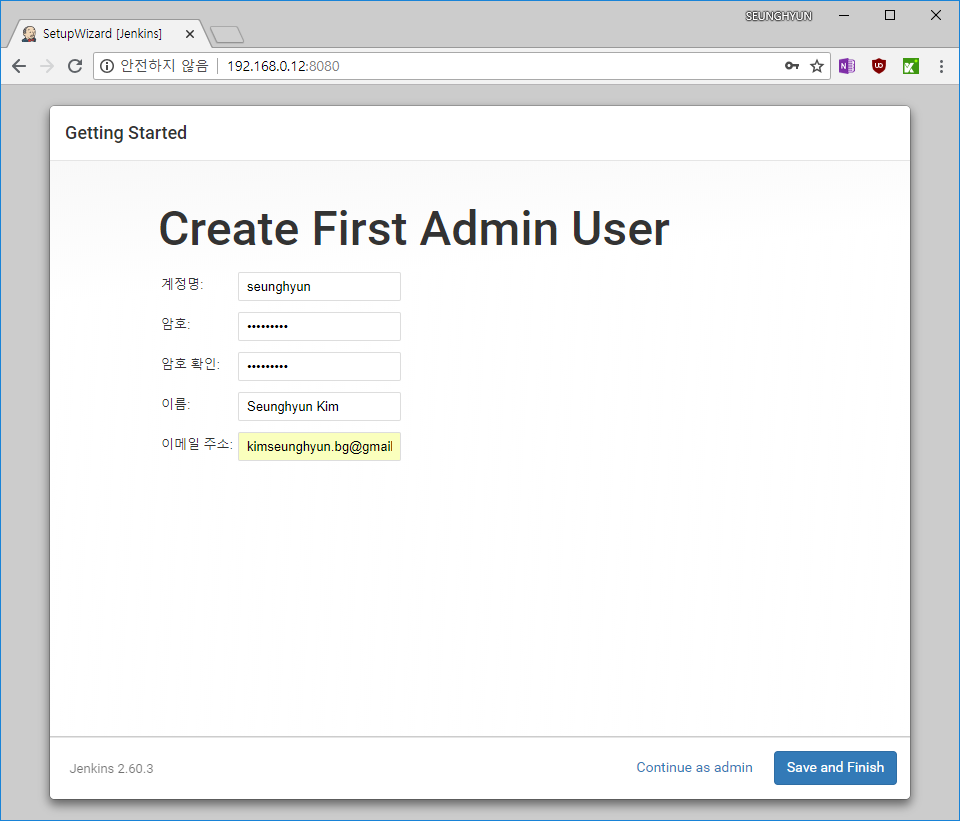

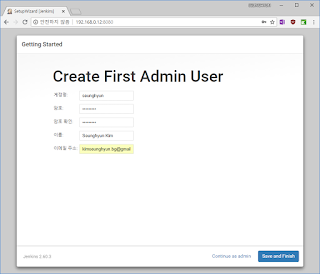

I need to make first admin user

Jenkins is ready!

[Automate Build] 2. Set up Jenkins Server on Docker

2. Set up jenkins server on docker

# mkdir -p /share/docker/jenkins
# docker run -d -p 8080:8080 -v /share/docker/jenkins:/var/jenkins_home --name jenkins -u root jenkins

------ update 2018-02-26 ------
** error : I got an error. when I installed jdk 1.7 on Jenkins on the virtualBox SharedFolder(/share/).

# mkdir -p /docker/jenkins
# docker run -d -p 8080:8080 -v /docker/jenkins:/var/jenkins_home --name jenkins -u root jenkins

# docker ps
CONTAINER ID        IMAGE                      COMMAND                  CREATED              STATUS                   PORTS                               NAMES
c78da9c5ae57        jenkins                    "/bin/tini -- /usr/l…"   About a minute ago   Up About a minute        0.0.0.0:8080->8080/tcp, 50000/tcp   jenkins
a95a445b29c8        garethflowers/svn-server   "/usr/bin/svnserve -…"   14 hours ago         Up 4 minutes (healthy)   0.0.0.0:3690->3690/tcp              svn-server

Access jenkins page through browser and you need initial password

# docker exec -it jenkins cat /var/jenkins_home/secrets/initialAdminPassword
a5a62c8d573c4a5682993f0820680349

2-2.Optional
I want jenkins' workspace to be on the virtualBox SharedFolder
Make new virtualBox SharedFolder in setting.

Mount jenkins-workspace

# sudo mount -t vboxsf jenkins_workspace /docker/jenkins/workspace/
